Iveco Eurotrakker 6x6 drilling rig - MoD Ref: 33051


Drilling Rig Click for similar items from the same category

Iveco Eurotrakker 6x6 drilling rig - Govsales of ex military vehicles for sale, mod surplus



Ask a question...



Click for other items in the same category

Iveco Eurotrakker 6x6 drilling rig - MoD Ref: 33051

Details

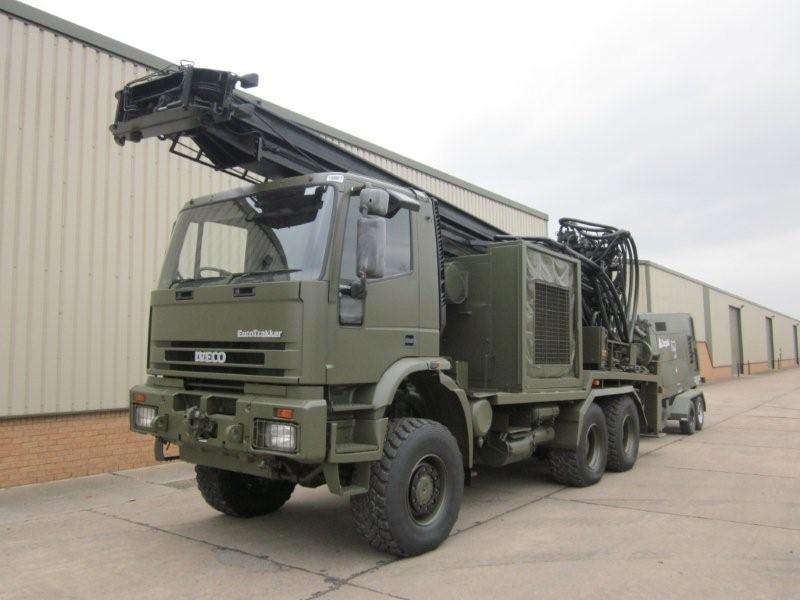

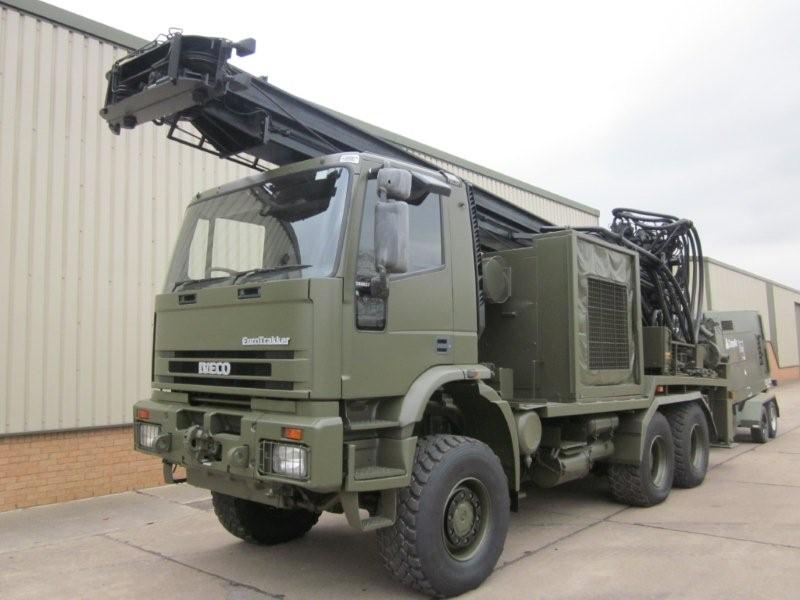

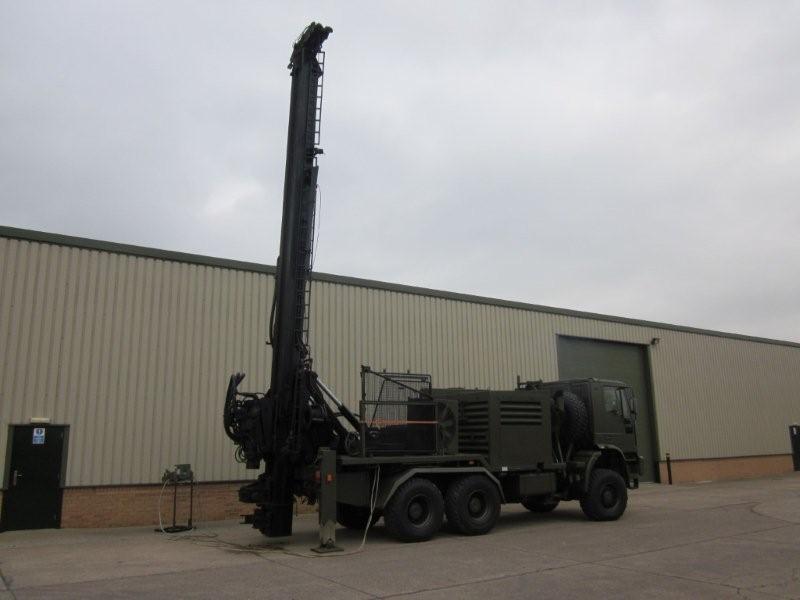

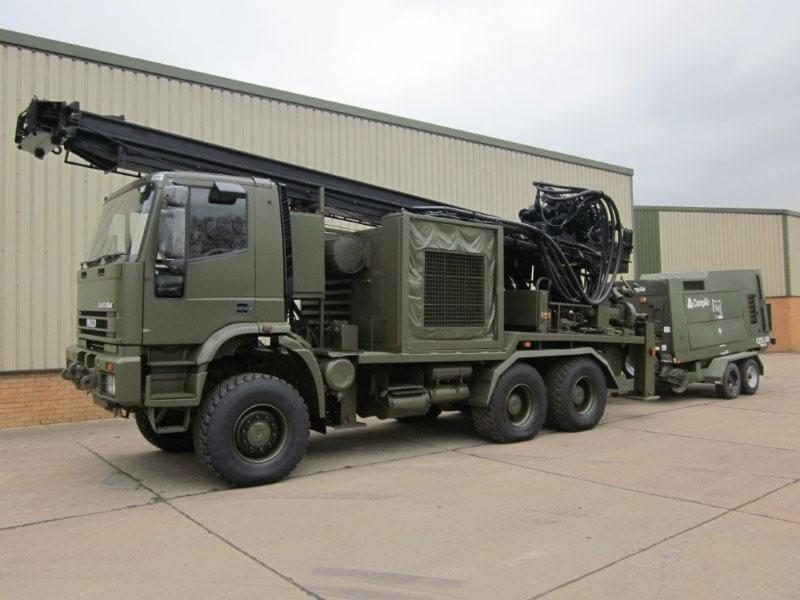

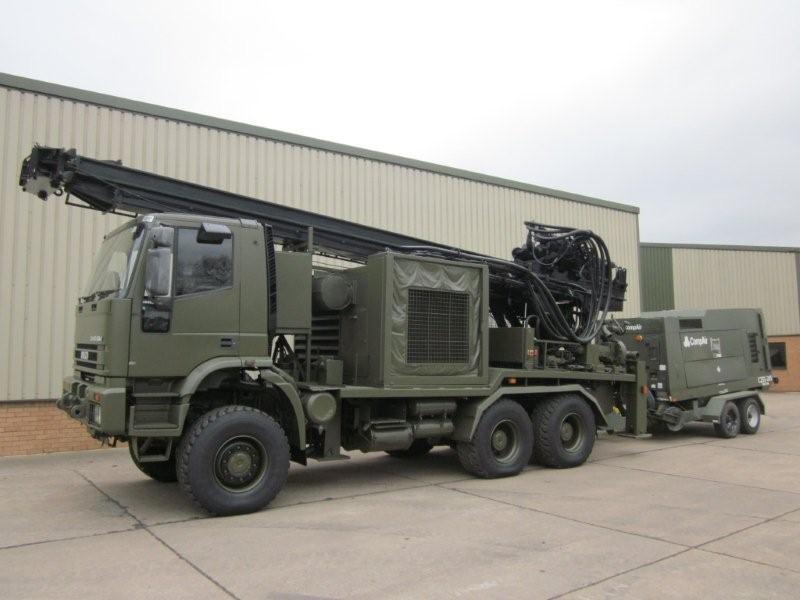

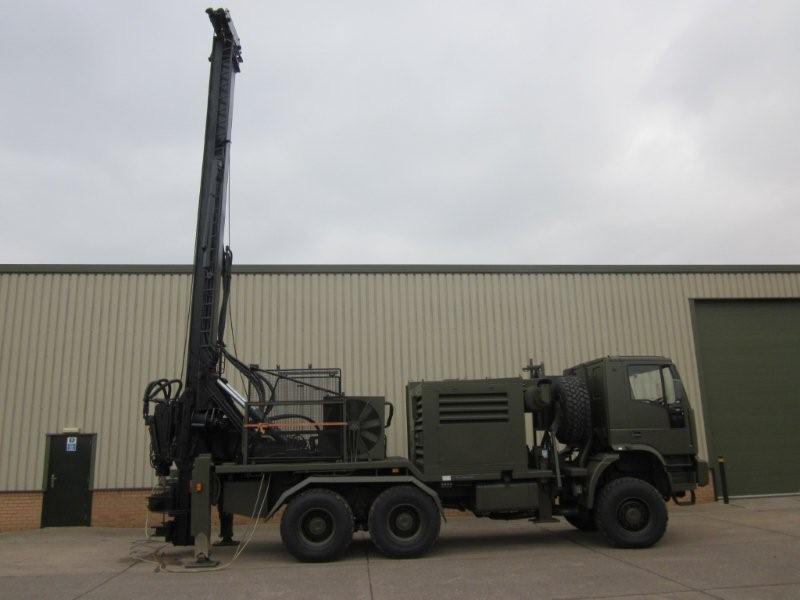

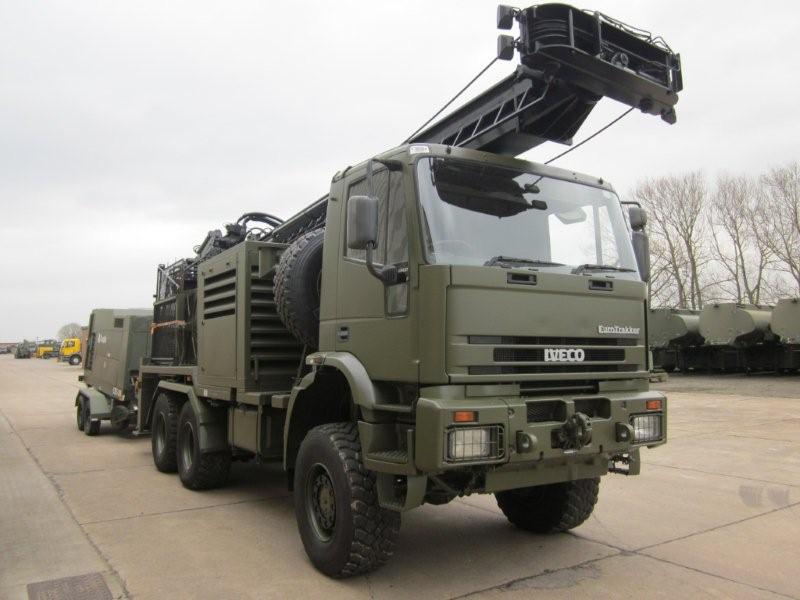

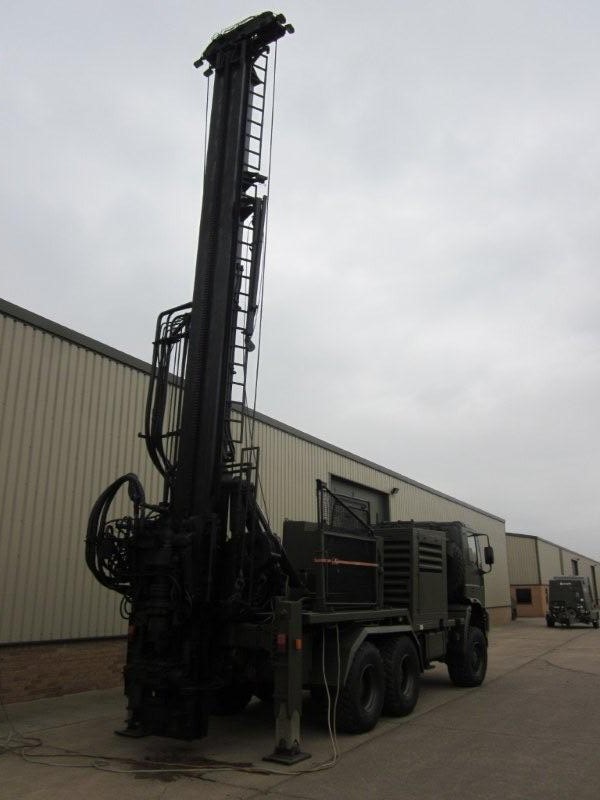

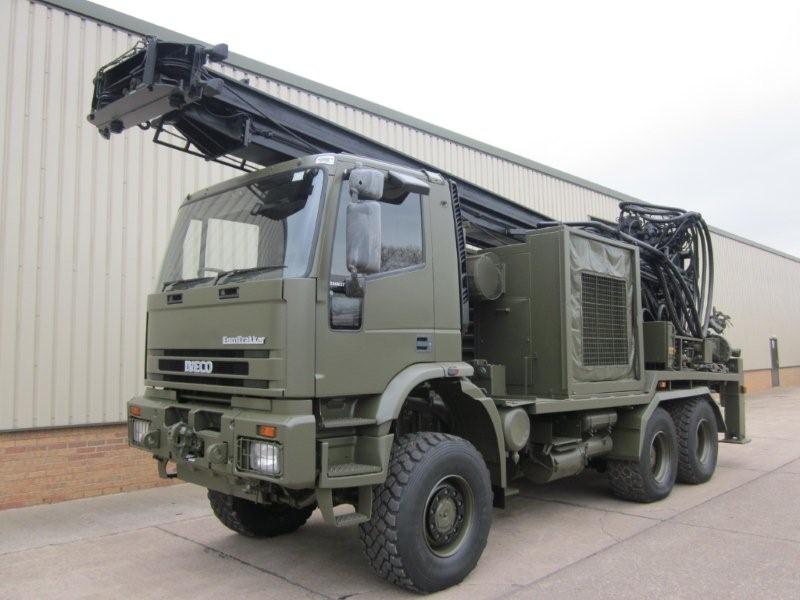

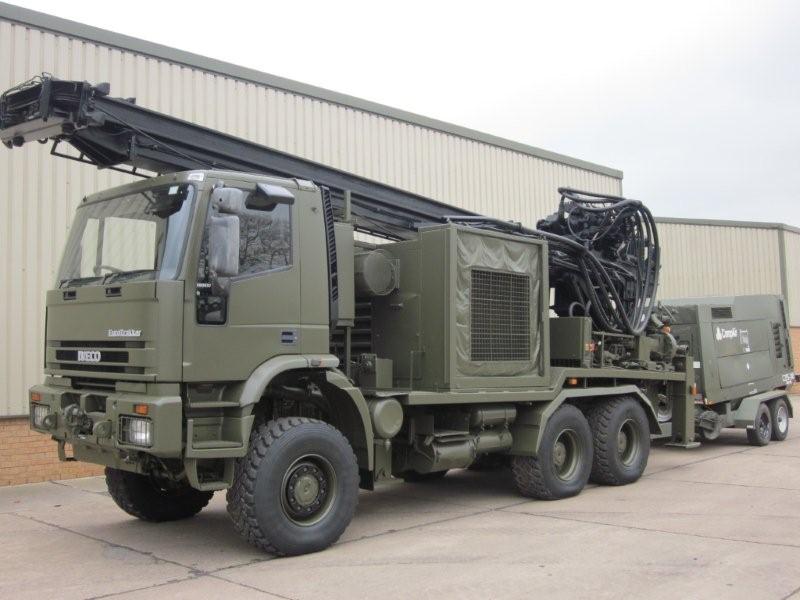

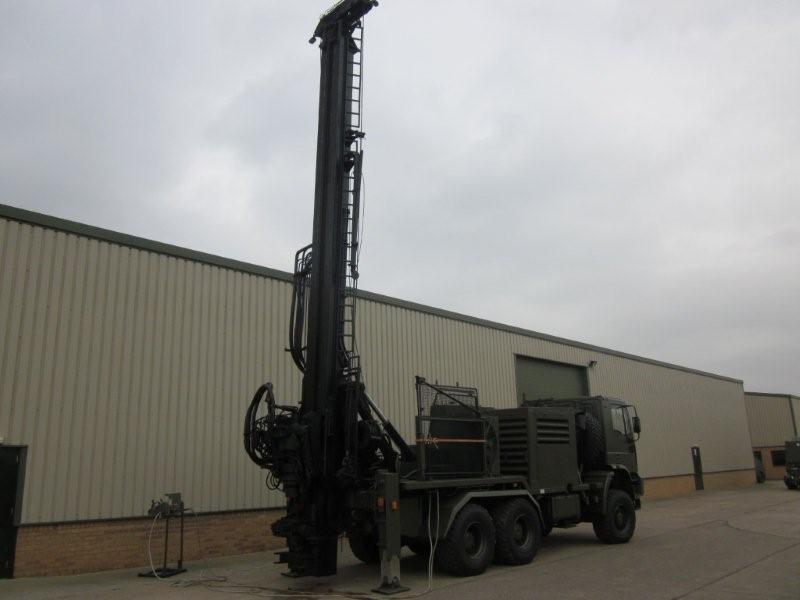

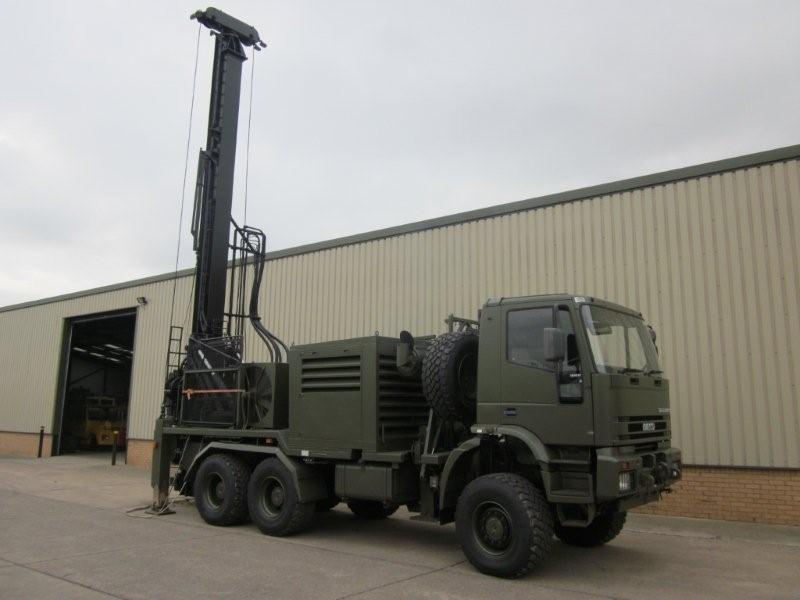

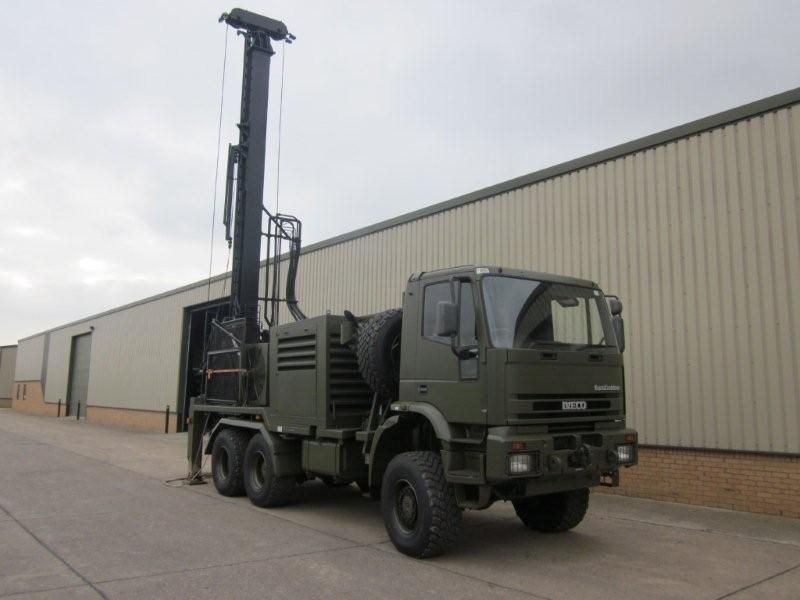

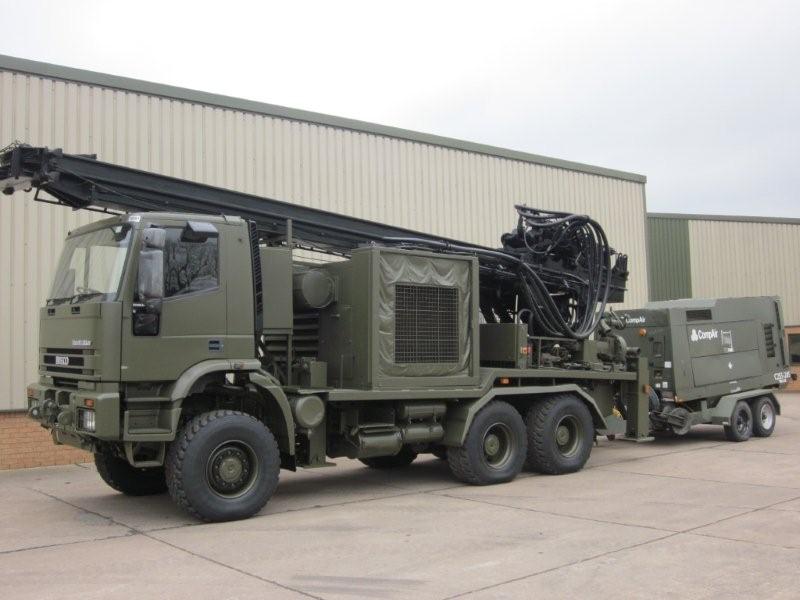

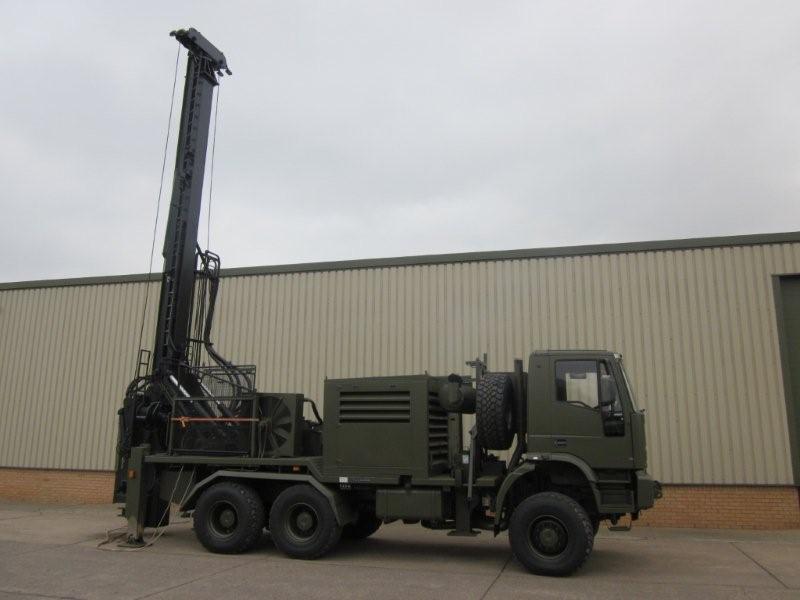

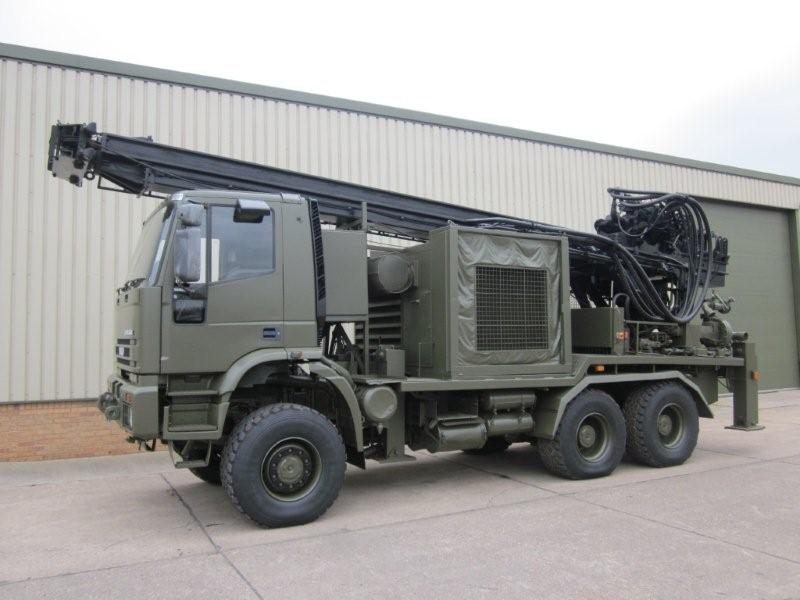

The equipment comprises of a Edeco HE175LM well drilling rig mounted on a Iveco Eurotrakker MP380E37 6x6 RHD truck.

The drilling rig is capable of drilling holes through all strata using variuos techniques. Rotary and down the hole hammer drilling, 300 mm diametre to 500 metres deep and 500 mm diametre to 100 metres deep.

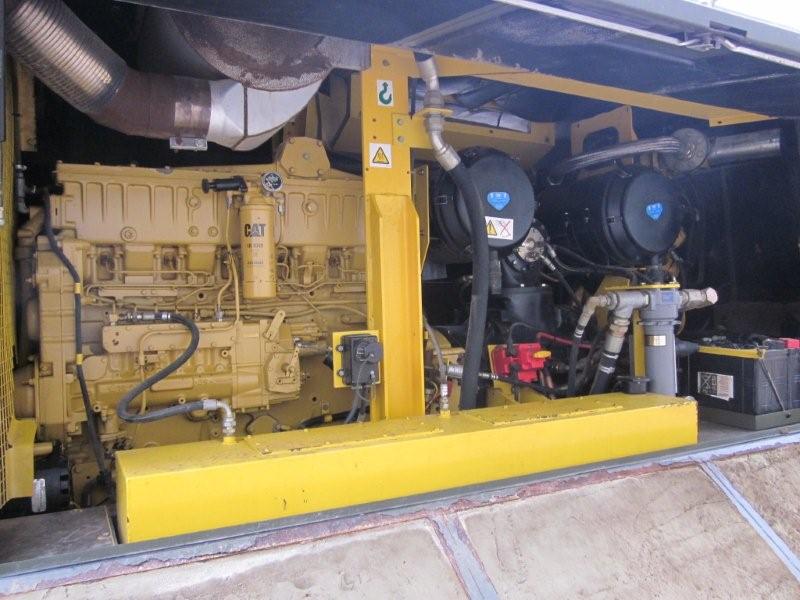

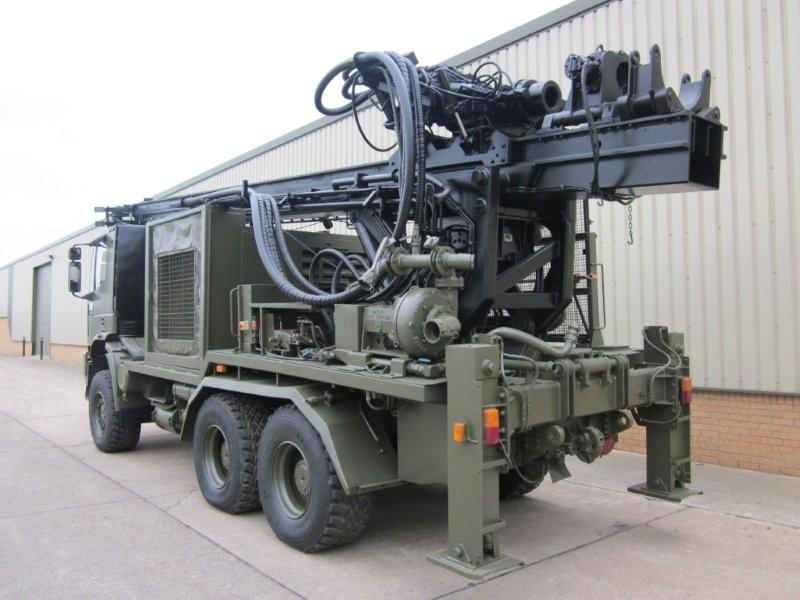

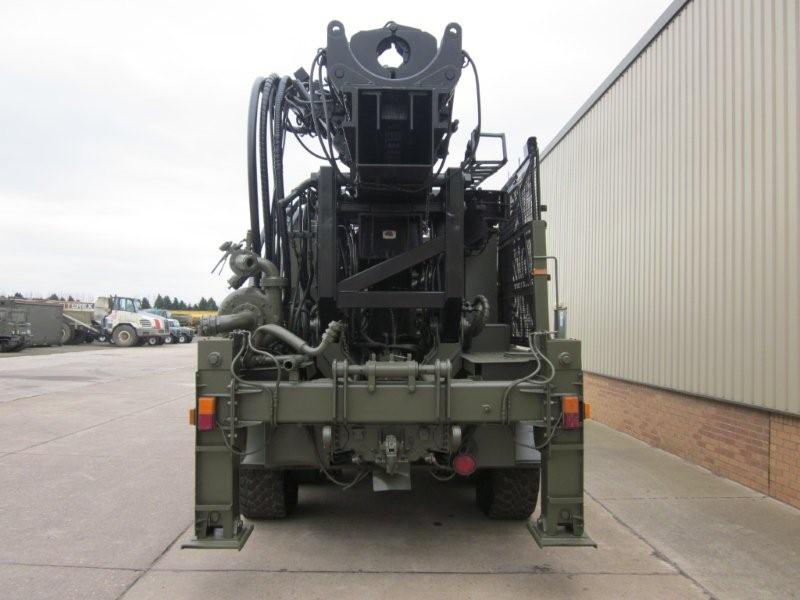

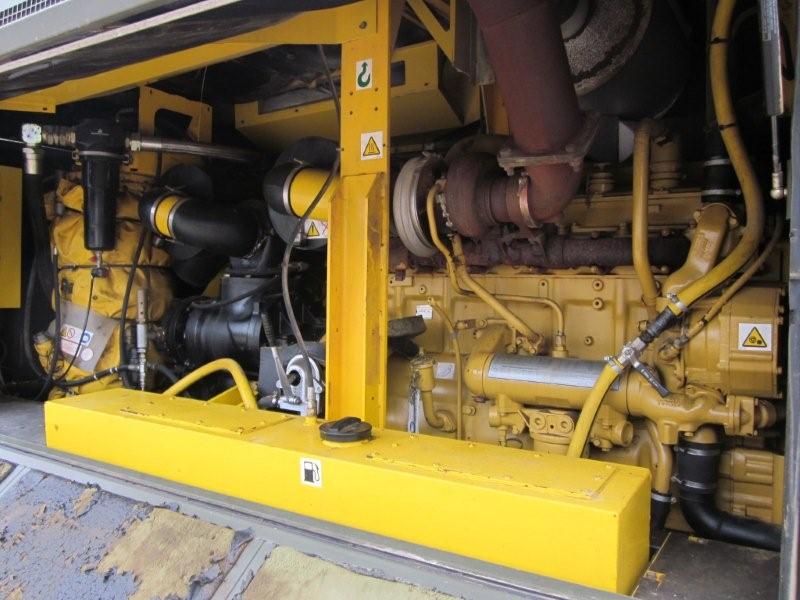

The HE175LM is powered by a caterpillar 3306 DITA water cooled diesel engine. It is in a acoustic enclosure, it drives the hydraulic pumps via a direct drive splitter. The truck is jacked up using 4 hydraulic stabiliser legs.

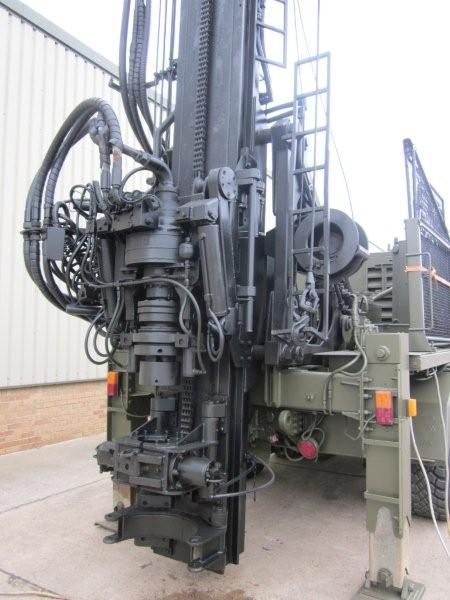

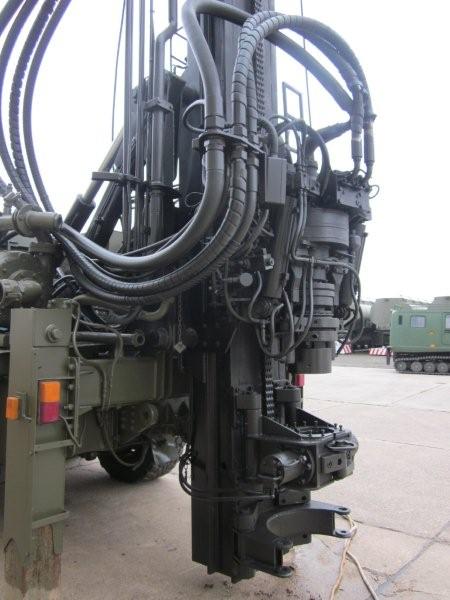

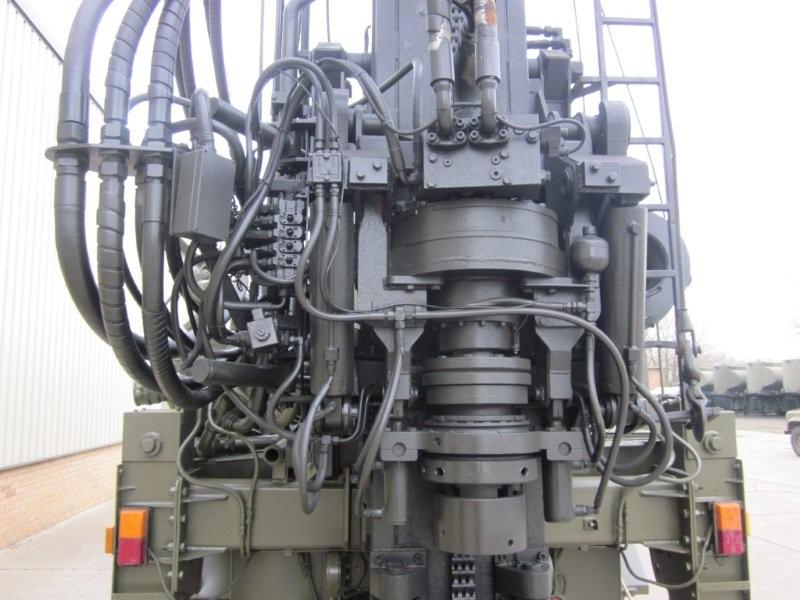

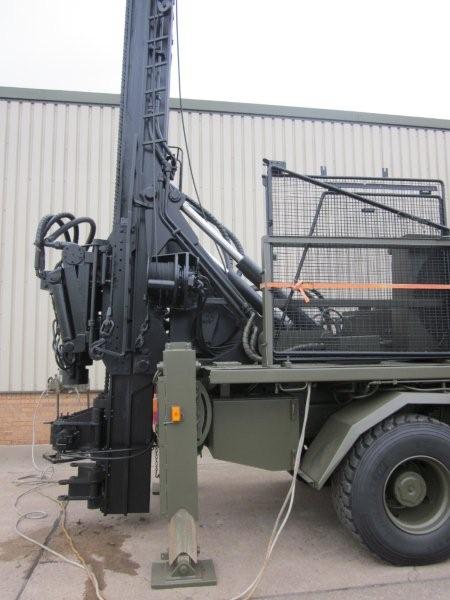

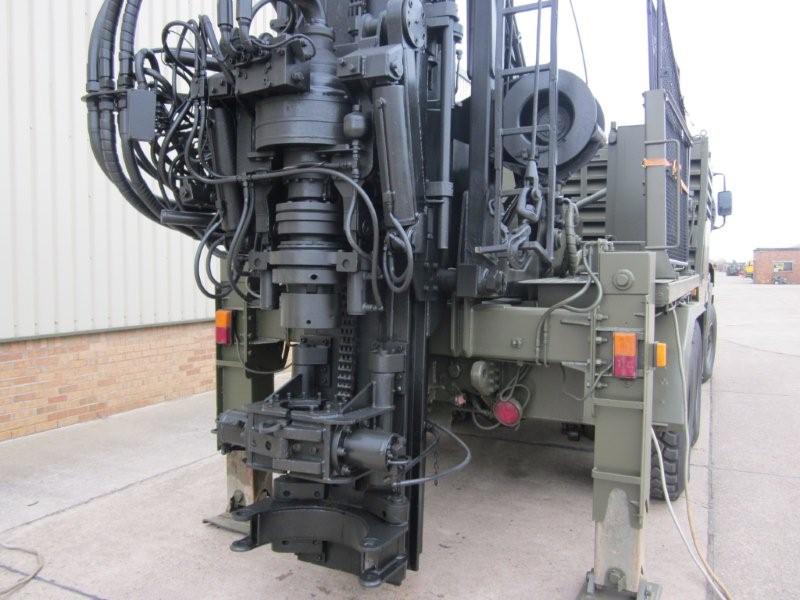

The rotary drill head, having a maximum drilling torque of 8000 Nm at a maximum speed of 75 RPM is powered by a hydraulic motor. A rod handling devise is mounted below the drill head. This facilitates the adding and removal of drill rods to/from the drill string without the need to physically hold the rod by the operator. The drill head tilt by 90 degrees so that the rod can be added/removed.

A main winch having a pull of 47 Kn is mounted on the rear of the mast. The winch incorporates a fail safe brake. It is used to handle drill pipe using a pipe boom mounted on the side of the mast.

A hydraulically powered mud pump provides flushing water/mud for the drilling procedure.

A hydraulically powered foam pump provides foam to assist in the removal of drilling cuttings when air flushing.

Rated capacity.
Rotary drilling;
300 mm dia 500 metres
500 mm dia 200 metres

Down the hole hammer drilling
300 mm dia 200 metres
500 mm dia 100 metres

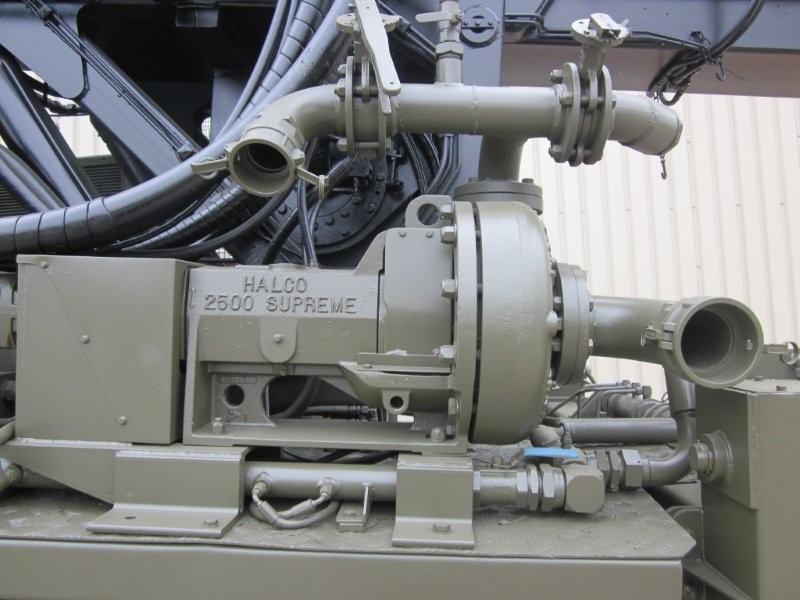

Mud pump
Type - Centrifugal
Output - 0 - 1800 litres/min
Pressue - 13.6 bar
Pipe size - 3"

Foam pump
Type - Triplex
Output - 45 litres/min
Pressue - 27 bar

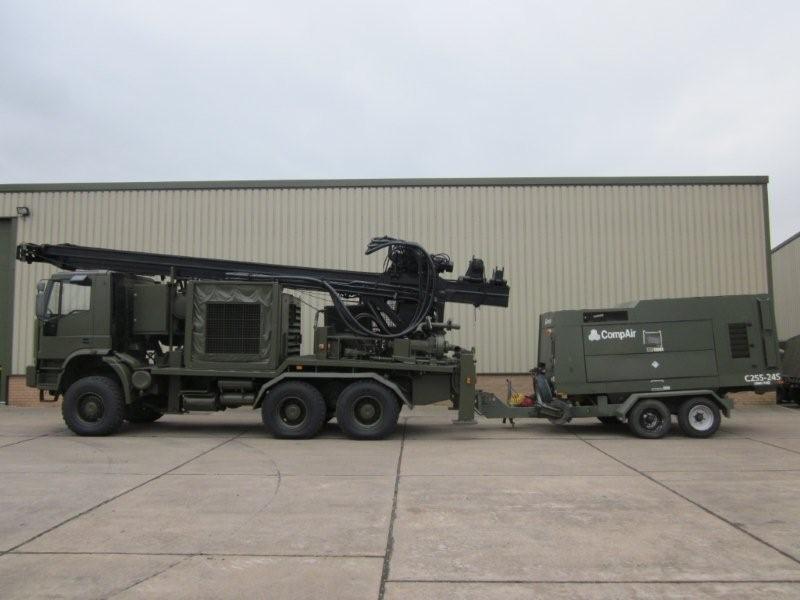

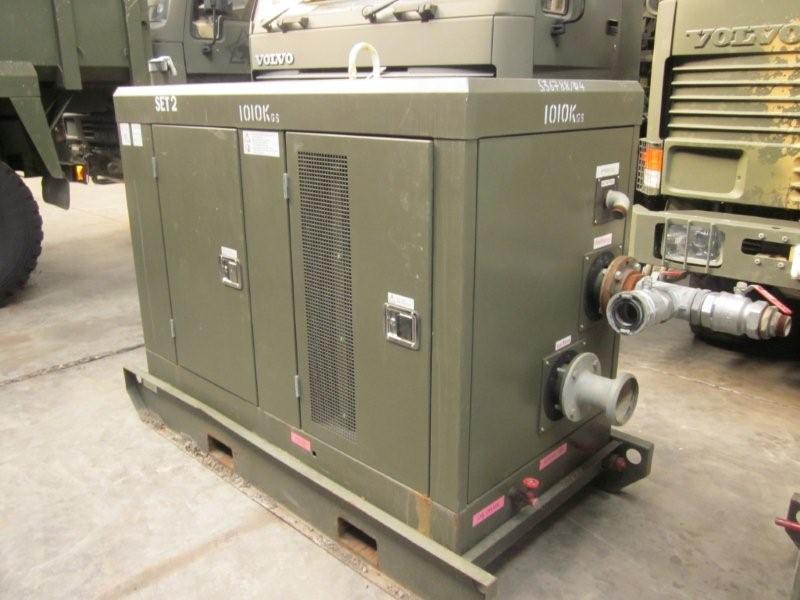

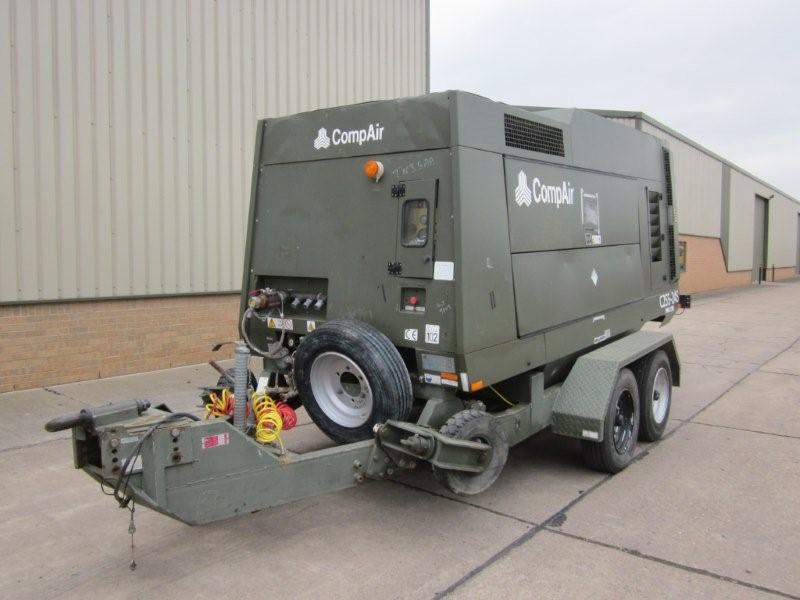

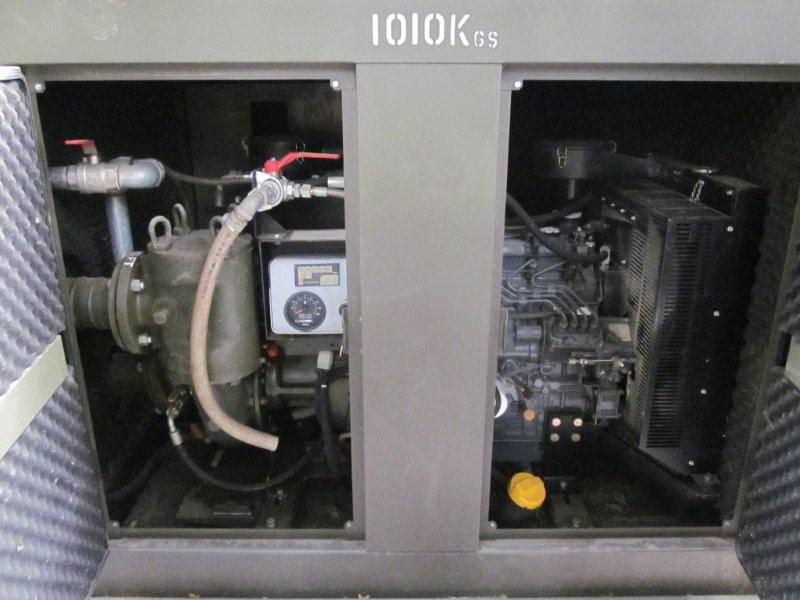

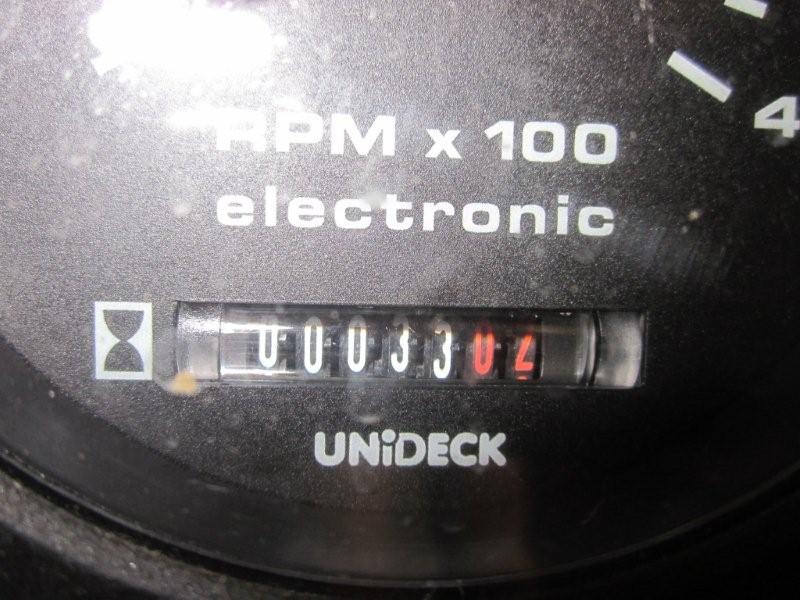

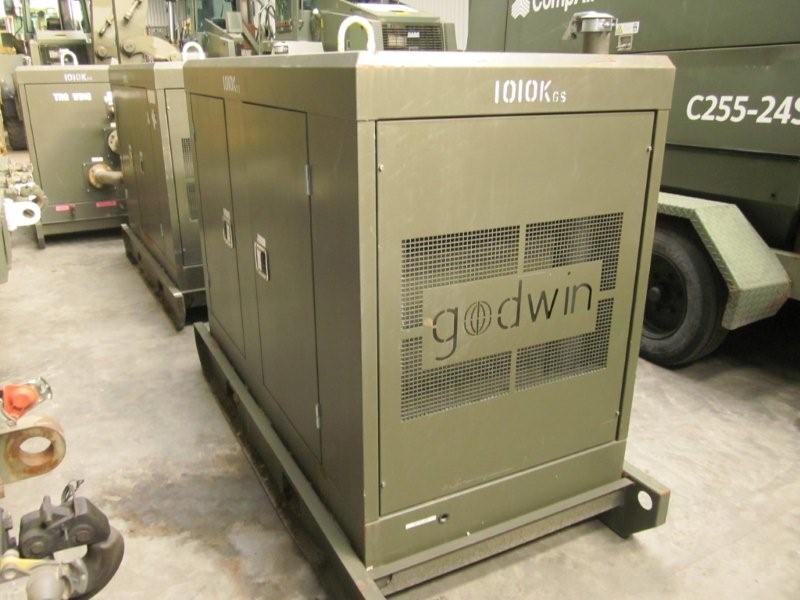

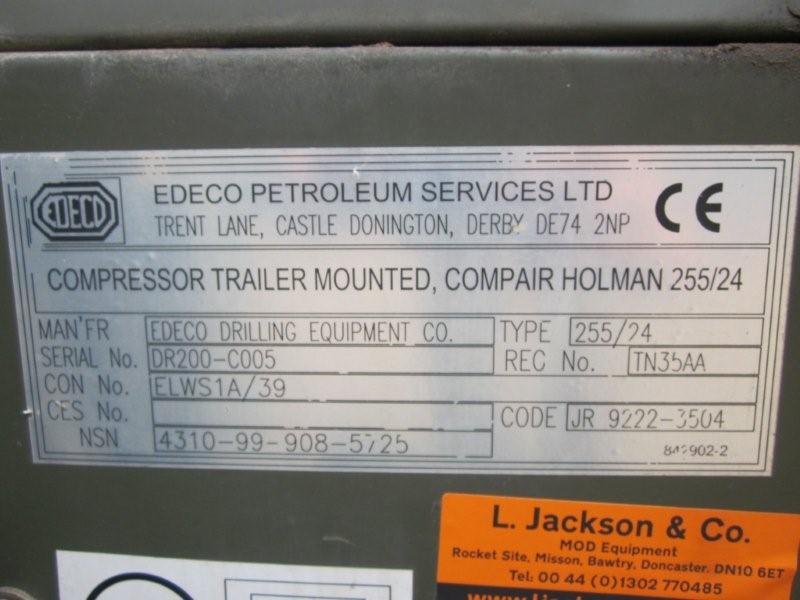

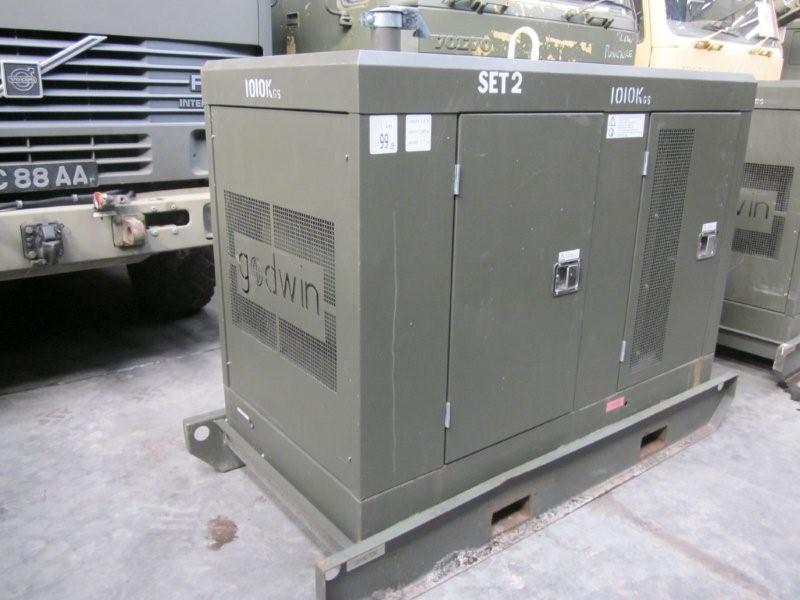

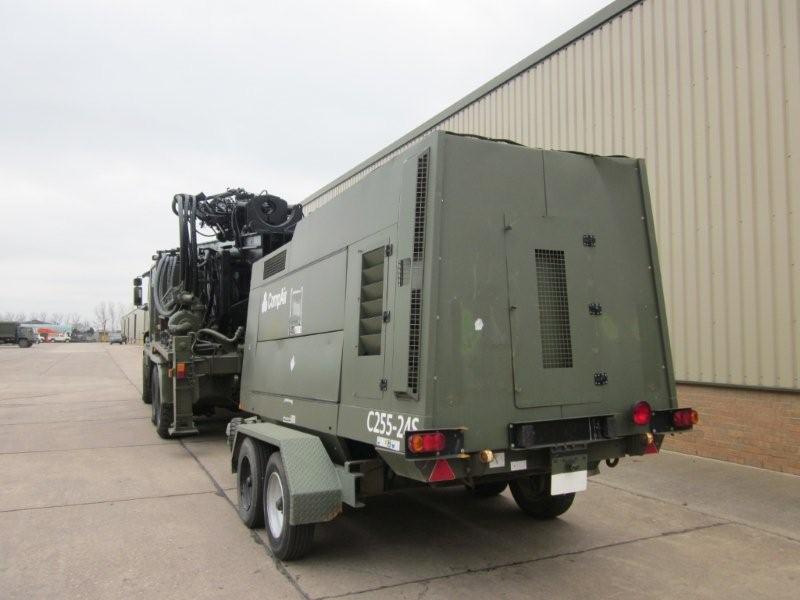

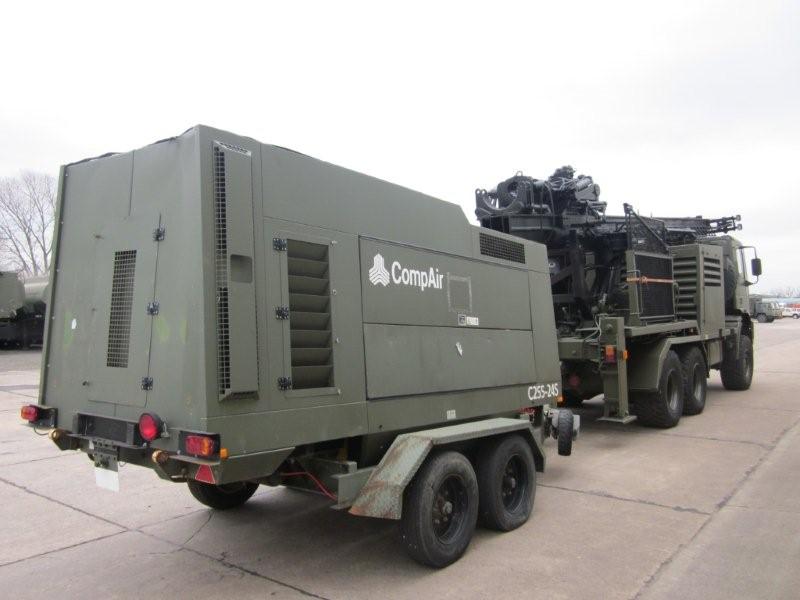

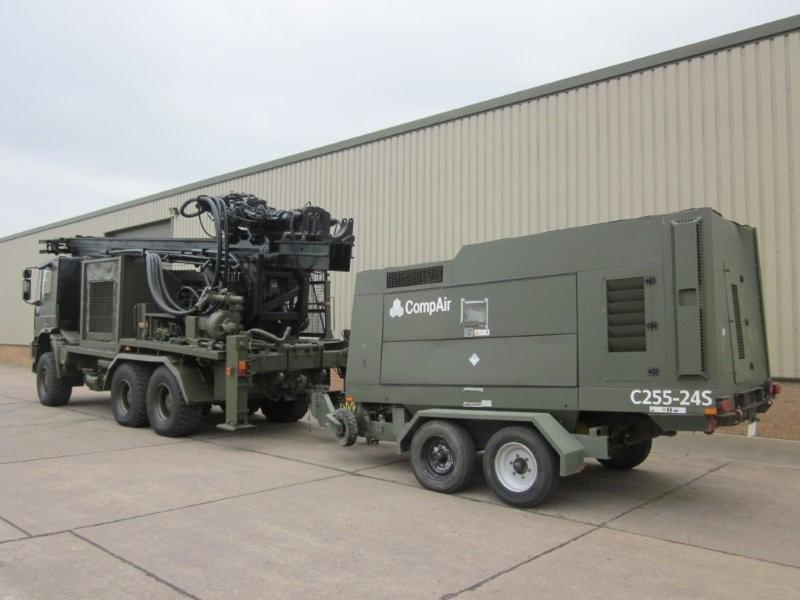

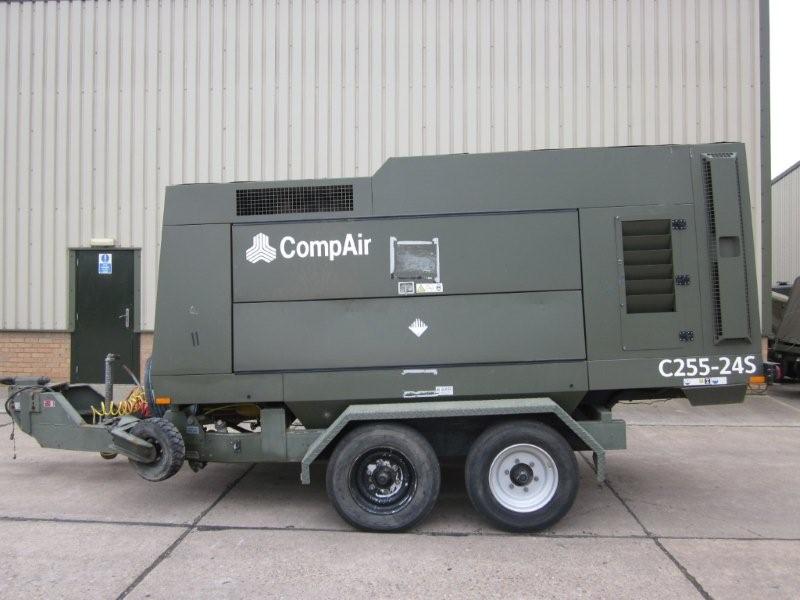

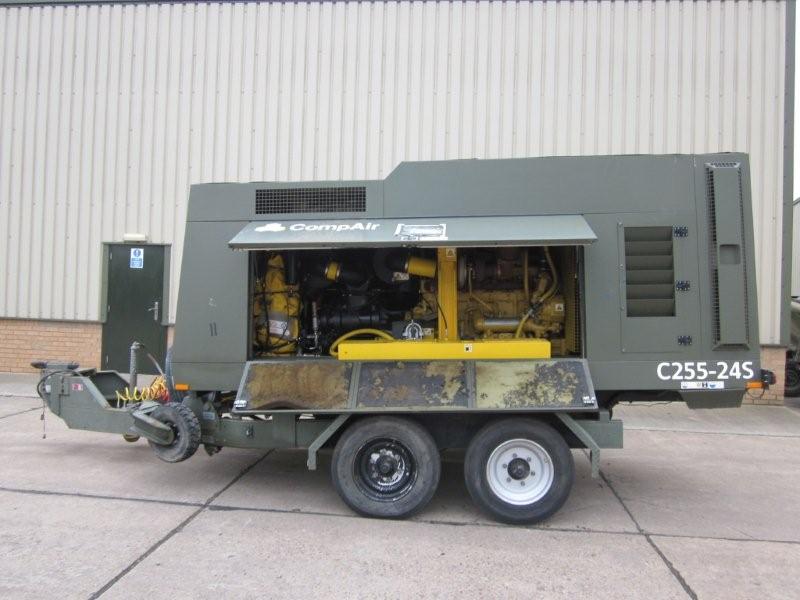

We are selling these drilling rigs complete with a compair Holmann 2 axle towed compressor, 900 cfm, 24 bar with cat engines, approx 500 hours and Godwin skid mounted water/mud pump.

CATEGORY Drilling Rig
MANUFACTURER Iveco
GEARBOX ZF manual
STEERING RHD
TYRES 445/65 R22.5
ELECTRICS 24 V
EXPORT REQUIREMENTS ...more OGEL/SIEL Licence Required
PRICE Click here to request a quote

Click for other items in the same category

All prices quoted are GBP U.K. Pounds Sterling Ex. Works excluding VAT where applicable and shipping / associated costs. Vehicles advertised are subject to remaining unsold. All prices quoted are based on "per individual unit"purchased, any reductions on advertised price for multiple item orders is subject to negotiation and is conducted at the time of inspection or provision of LOI. For complete Terms & Conditions See Main Website. Photo's shown above may represent a vehicle type rather than an actual vehicle, vehicles are available serviced and painted to customers preference.
An export licence may be required for items sold to customers outside of the U.K.
